PubMatrixR: Literature Co-occurrence Analysis

library(PubMatrixR)
library(knitr)
library(kableExtra)
library(dplyr)
library(msigdf)
library(pheatmap)
library(ggplot2)

Introduction

PubMatrixR is an R package designed to analyze literature co-occurrence patterns by systematically searching PubMed and PMC databases. This vignette demonstrates how to:

Create co-occurrence matrices from literature searches
Visualize results using custom heatmaps with overlap percentage clustering
Work with gene sets from MSigDB
Create bar plots showing publication patterns by gene
Export results for further analysis

Acknowledgments

This package is a fork of the original PubMatrixR by tslaird. Our gratitude to the original author.

NCBI API Key (Recommended)

For better performance and higher rate limits, we recommend obtaining an NCBI API key:

Without API key: 3 requests per second
With API key: 10 requests per second

To obtain your free NCBI API key, visit: https://support.nlm.nih.gov/kbArticle/?pn=KA-05317

Once you have your API key, you can use it in PubMatrixR like this:

result <- PubMatrix(A = gene_set_1,
                   B = gene_set_2,
                   API.key = "your_api_key_here",
                   Database = "pubmed")

Preparing Gene Sets

Making the gene lists from MSigDB

For this example, we’ll extract genes related to WNT signaling and obesity from the MSigDB database:

# Extract WNT-related genes
A <- msigdf::msigdf.human %>%
  dplyr::filter(grepl(geneset, pattern = "wnt", ignore.case = TRUE)) %>%
  dplyr::pull(symbol) %>%
  unique()

# Extract obesity-related genes
B <- msigdf::msigdf.human %>%
  dplyr::filter(grepl(geneset, pattern = "obesity", ignore.case = TRUE)) %>%
  dplyr::pull(symbol) %>%
  unique()

# Sample genes for demonstration (making them equal in length)
A <- sample(A, 10, replace = FALSE)
B <- sample(B, 10, replace = FALSE)

Fallback Example Dataset

When MSigDB is not available, we use these representative gene sets:

# WNT signaling pathway genes
A <- c("WNT1", "WNT2", "WNT3A", "WNT5A","WNT7B", "CTNNB1", "DVL1")

# Obesity-related genes
B <- c("LEPR", "ADIPOQ", "PPARG", "TNF", "IL6", "ADRB2" ,"INSR")

Literature Analysis

Running PubMatrixR

Now we’ll search for co-occurrences between our gene sets in PubMed literature:

# Run actual PubMatrix analysis
current_year <- format(Sys.Date(), "%Y")
result <- PubMatrix(A = A,
                    B = B,
                   Database = "pubmed",
                   daterange = c(2020, current_year),
                   outfile = "pubmatrix_result")
#> [1] "https://eutils.ncbi.nlm.nih.gov/entrez/eutils/esearch.fcgi?db=pubmed&datetype=pdat&mindate=2020&maxdate=2025"
#> [1] "<b><a href=\"https://www.ncbi.nlm.nih.gov/pubmed/?term=2020:2025[DP]+AND+"

Results Table

The co-occurrence matrix shows the number of publications mentioning each pair of genes:

kable(result,
        caption = "Co-occurrence Matrix: WNT Genes vs Obesity Genes (Publication Counts)",
        align = "c",
        format = "html") %>%
    kableExtra::kable_styling(bootstrap_options = c("striped", "hover", "condensed"),
                             full_width = FALSE,
                             position = "center") %>%
    kableExtra::add_header_above(c(" " = 1, "Obesity Genes" = length(A)))

Co-occurrence Matrix: WNT Genes vs Obesity Genes (Publication Counts)
	Obesity Genes
	WNT1	WNT2	WNT3A	WNT5A	WNT7B	CTNNB1	DVL1
LEPR	3	1	0	43	41	0	1
ADIPOQ	0	0	2	4	3	0	0
PPARG	0	0	1	61	47	0	0
TNF	2	4	5	57	73	1	0
IL6	0	0	1	3	5	0	0
ADRB2	1	5	19	118	88	0	1
INSR	0	0	0	1	2	0	0

Visualization

Publication Count Bar Plots

Let’s first examine which genes have the highest publication counts:

# Create data frame for List A genes (rows) colored by List B genes (columns)
a_genes_data <- data.frame(
  gene = rownames(result),
  total_pubs = rowSums(result),
  stringsAsFactors = FALSE
)

# Add color coding based on max overlap with B genes
a_genes_data$max_b_gene <- apply(result, 1, function(x) colnames(result)[which.max(x)])
a_genes_data$max_overlap <- apply(result, 1, max)

# Create data frame for List B genes (columns) colored by List A genes (rows)
b_genes_data <- data.frame(
  gene = colnames(result),
  total_pubs = colSums(result),
  stringsAsFactors = FALSE
)

# Add color coding based on max overlap with A genes
b_genes_data$max_a_gene <- apply(result, 2, function(x) rownames(result)[which.max(x)])
b_genes_data$max_overlap <- apply(result, 2, max)

# Plot A genes colored by their strongest B gene partner
p1 <- ggplot(a_genes_data, aes(x = reorder(gene, total_pubs), y = total_pubs, fill = max_b_gene)) +
  geom_bar(stat = "identity")+
  coord_flip() +
  labs(title = "List A Genes by Publication Count",
       subtitle = "Colored by strongest List B gene partner",
       x = "Genes (List A)",
       y = "Total Publications",
       fill = "Strongest B Partner") +
  theme_minimal() +
  theme(legend.position = "bottom") +
  scale_fill_brewer(palette = "Set1")


# Plot B genes colored by their strongest A gene partner
p2 <- ggplot(b_genes_data, aes(x = reorder(gene, total_pubs), y = total_pubs, fill = max_a_gene)) +
  geom_bar(stat = "identity") +
  coord_flip() +
  labs(title = "List B Genes by Publication Count",
       subtitle = "Colored by strongest List A gene partner",
       x = "Genes (List B)",
       y = "Total Publications",
       fill = "Strongest A Partner")+
  theme_minimal() +
  theme(legend.position = "bottom") +
  scale_fill_brewer(palette = "Set1")

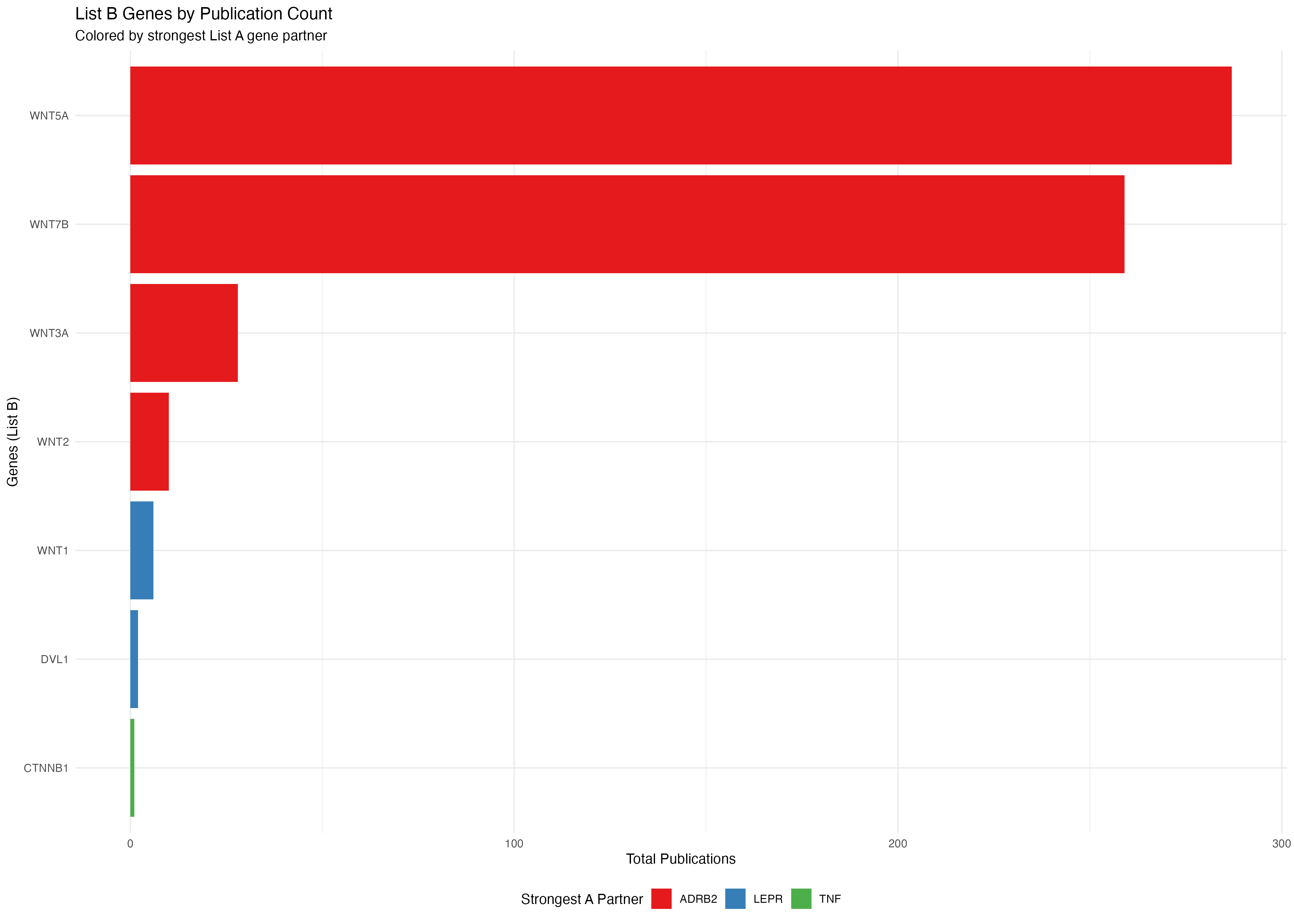

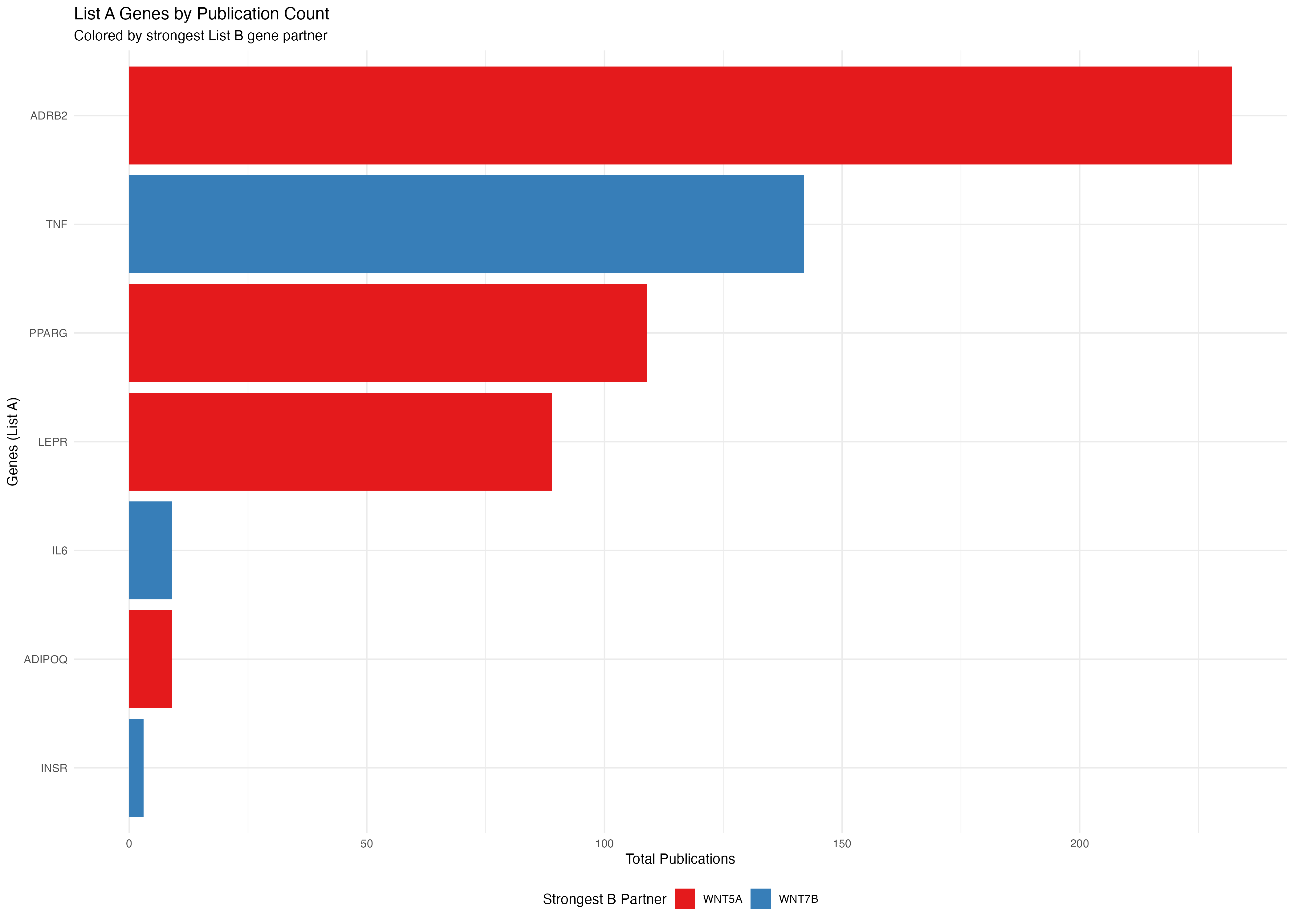

print(p1)

print(p2)

Heatmap with Overlap Percentages

The heatmap displays overlap percentages calculated from the publication co-occurrence counts:

plot_pubmatrix_heatmap(result,
                       title = "WNT-Obesity Gene Overlap Percentages",
                       show_numbers = TRUE ,
                       width =  16,
                       height = 14)

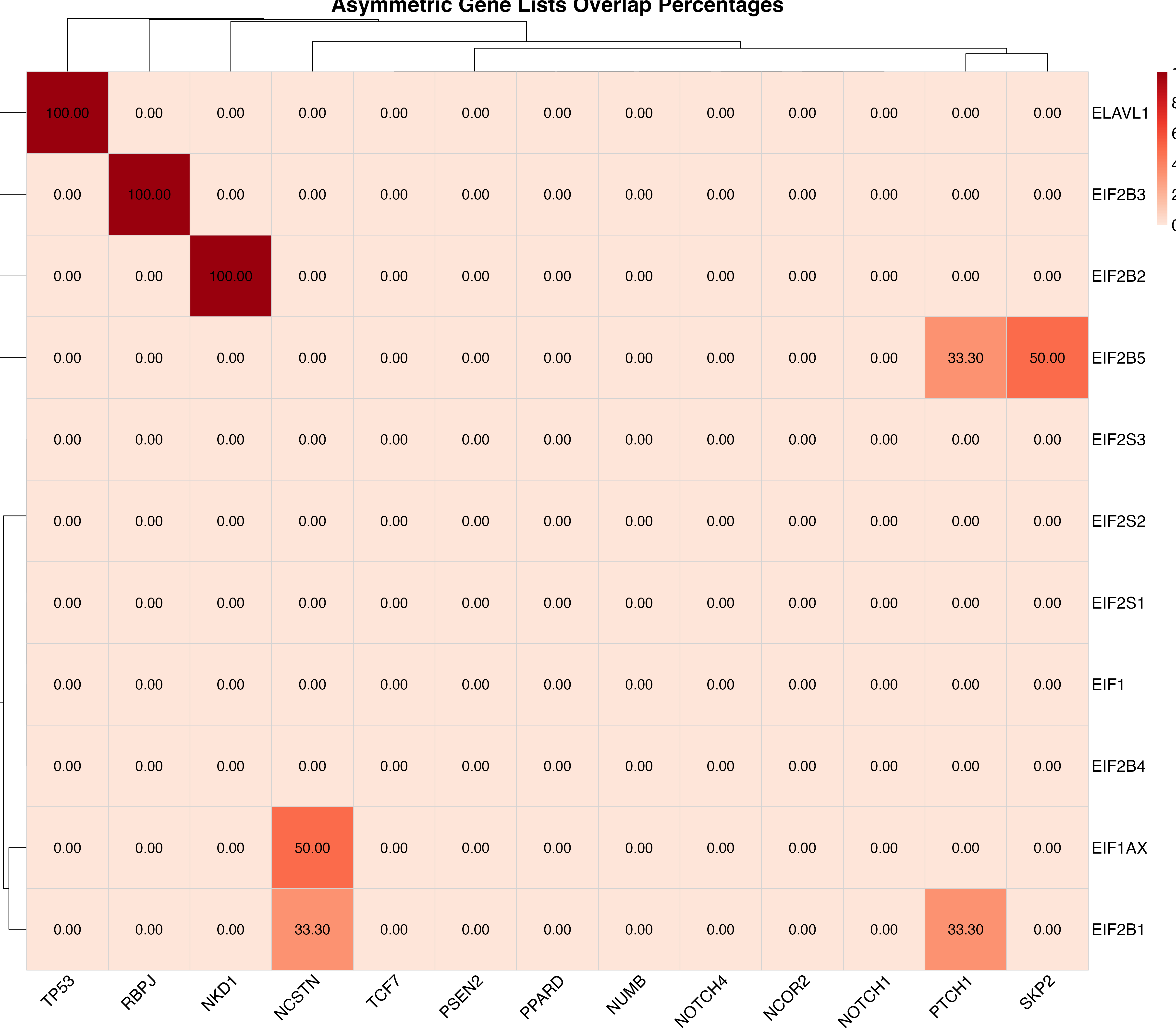

Overlap percentage heatmap with values displayed in each cell

Clean Heatmap

For a cleaner visualization without numbers, useful for presentations:

plot_pubmatrix_heatmap(result,
                       title = "WNT-Obesity Gene Co-occurrence (Clean)",
                       show_numbers = FALSE,
                       width = 16,
                       height = 14)

Co-occurrence heatmap without numbers for better visual clarity

Asymmetric lists

A <- c("NCOR2", "NCSTN", "NKD1", "NOTCH1", "NOTCH4", "NUMB", "PPARD", "PSEN2", "PTCH1", "RBPJ", "SKP2", "TCF7", "TP53")


B <- c("EIF1", "EIF1AX", "EIF2B1", "EIF2B2", "EIF2B3", "EIF2B4", "EIF2B5", "EIF2S1", "EIF2S2", "EIF2S3", "ELAVL1")


# Run actual PubMatrix analysis
current_year <- format(Sys.Date(), "%Y")
result <- PubMatrix(A = A,
                    B = B,
                   Database = "pubmed",
                   daterange = c(2020, current_year),
                   outfile = "pubmatrix_result")
#> [1] "https://eutils.ncbi.nlm.nih.gov/entrez/eutils/esearch.fcgi?db=pubmed&datetype=pdat&mindate=2020&maxdate=2025"
#> [1] "<b><a href=\"https://www.ncbi.nlm.nih.gov/pubmed/?term=2020:2025[DP]+AND+"

Results Table

The co-occurrence matrix shows the number of publications mentioning each pair of genes:

kable(result,
        caption = "Co-occurrence Matrix: Longer Lists (Publication Counts)",
        align = "c",
        format = "html") %>%
    kableExtra::kable_styling(bootstrap_options = c("striped", "hover", "condensed"),
                             full_width = FALSE,
                             position = "center") %>%
    kableExtra::add_header_above(c(" " = 1, "Genes" = length(A)))

Co-occurrence Matrix: Longer Lists (Publication Counts)
	Genes
	NCOR2	NCSTN	NKD1	NOTCH1	NOTCH4	NUMB	PPARD	PSEN2	PTCH1	RBPJ	SKP2	TCF7	TP53
EIF1	0	0	0	0	0	0	0	0	0	0	0	0	0
EIF1AX	0	1	0	0	0	0	0	0	0	0	0	0	0
EIF2B1	0	1	0	0	0	0	0	0	1	0	0	0	0
EIF2B2	0	0	20	0	0	0	0	0	0	0	0	0	0
EIF2B3	0	0	0	0	0	0	0	0	0	3	0	0	0
EIF2B4	0	0	0	0	0	0	0	0	0	0	0	0	0
EIF2B5	0	0	0	0	0	0	0	0	1	0	1	0	0
EIF2S1	0	0	0	0	0	0	0	0	0	0	0	0	0
EIF2S2	0	0	0	0	0	0	0	0	0	0	0	0	0
EIF2S3	0	0	0	0	0	0	0	0	0	0	0	0	0
ELAVL1	0	0	0	0	0	0	0	0	0	0	0	0	6

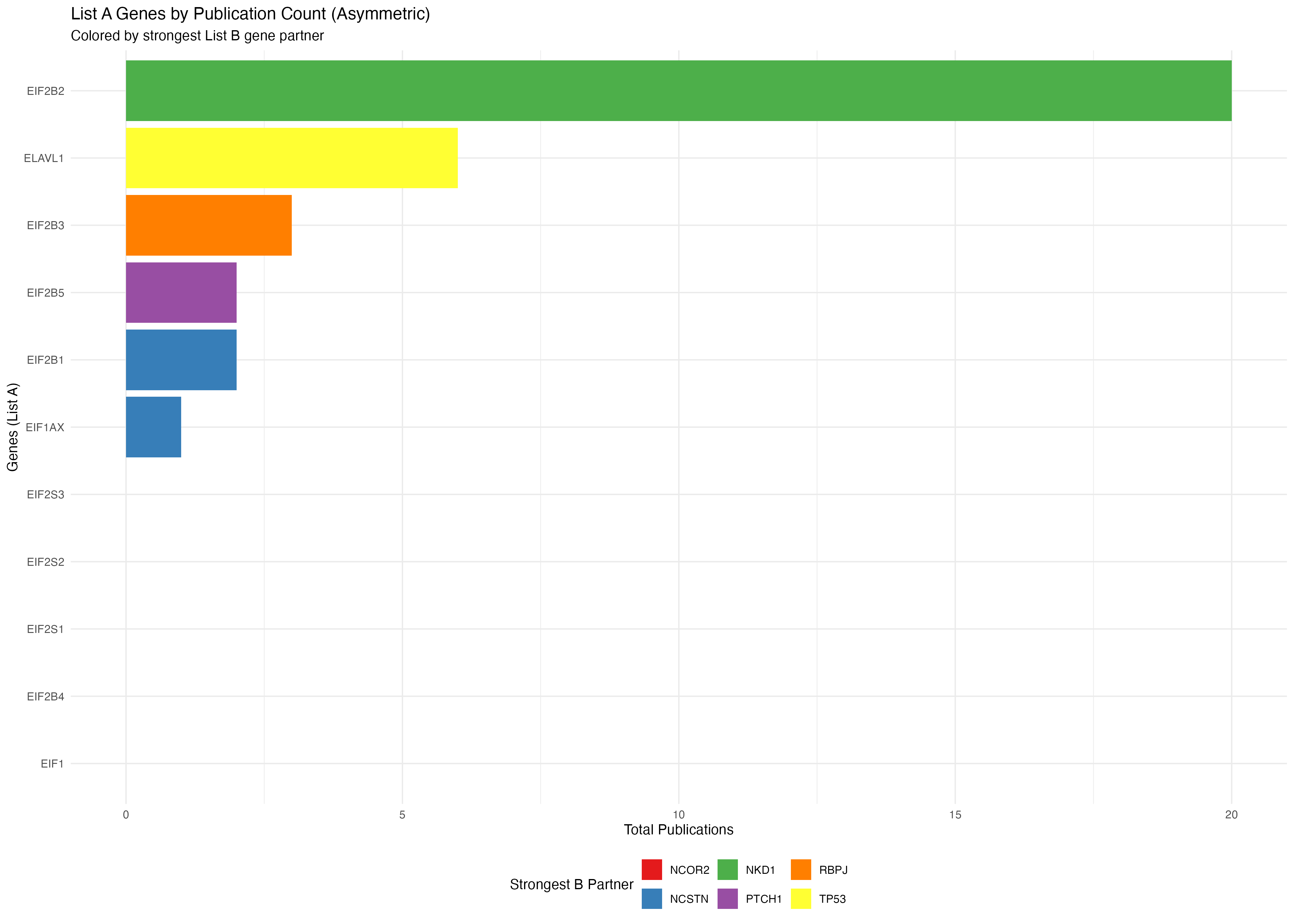

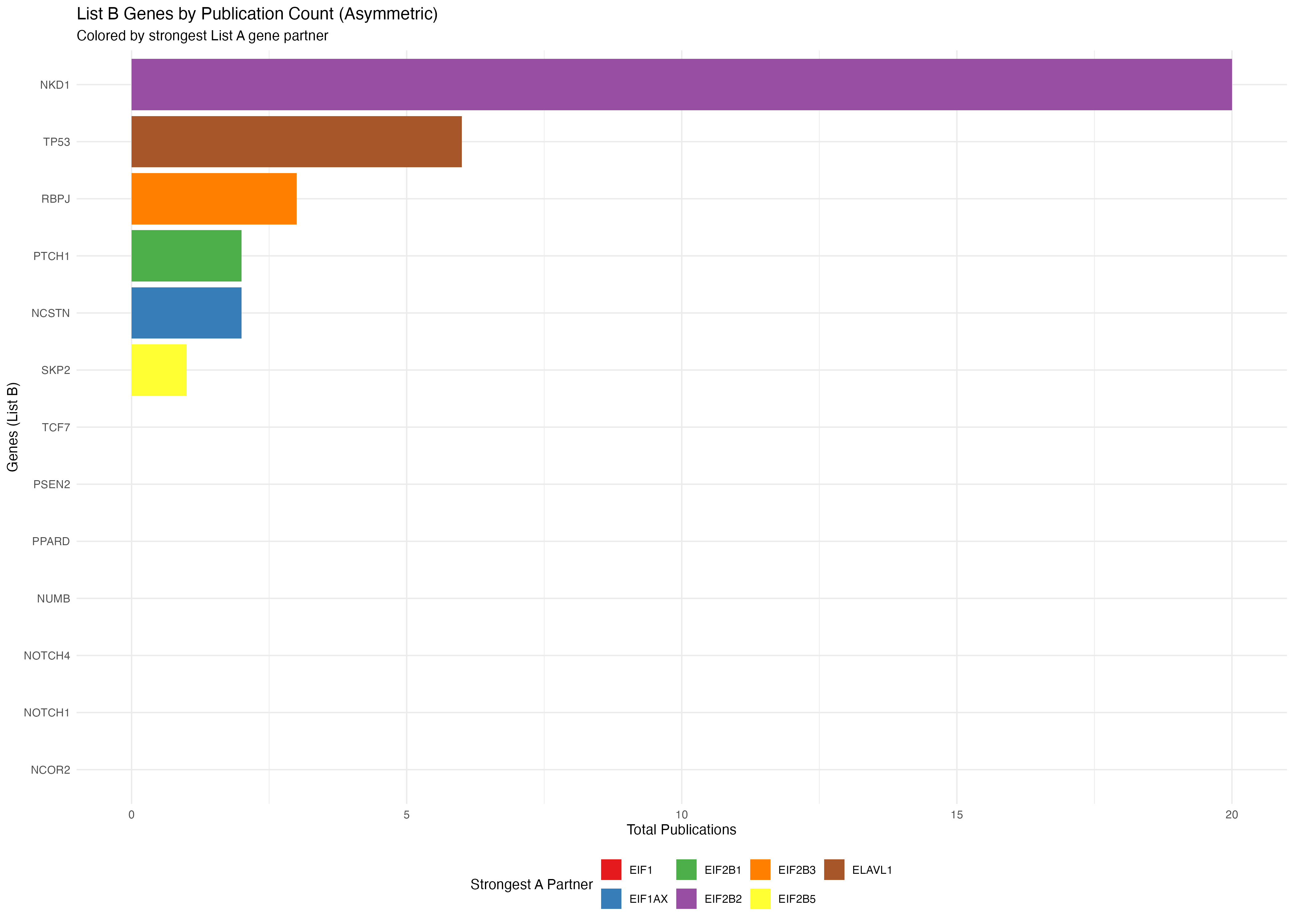

Bar Plots for Asymmetric Lists

# Create data frame for List A genes (rows) colored by List B genes (columns)
a_genes_data2 <- data.frame(
  gene = rownames(result),
  total_pubs = rowSums(result),
  stringsAsFactors = FALSE
)

# Add color coding based on max overlap with B genes
a_genes_data2$max_b_gene <- apply(result, 1, function(x) colnames(result)[which.max(x)])
a_genes_data2$max_overlap <-  apply(result, 1, max)

# Create data frame for List B genes (columns) colored by List A genes (rows)
b_genes_data2 <- data.frame(
  gene = colnames(result),
  total_pubs = colSums(result),
  stringsAsFactors = FALSE
)

# Add color coding based on max overlap with A genes
b_genes_data2$max_a_gene <- apply(result, 2, function(x) rownames(result)[which.max(x)])
b_genes_data2$max_overlap <- apply(result, 2, max)

# Plot A genes colored by their strongest B gene partner
p3 <- ggplot(a_genes_data2, aes(x = reorder(gene, total_pubs), y = total_pubs, fill = max_b_gene)) +
  geom_bar(stat = "identity") +
  coord_flip() +
  labs(title = "List A Genes by Publication Count (Asymmetric)",
       subtitle = "Colored by strongest List B gene partner",
       x = "Genes (List A)",
       y = "Total Publications",
       fill = "Strongest B Partner") +
  theme_minimal() +
  theme(legend.position = "bottom")+
  scale_fill_brewer(palette = "Set1")


# Plot B genes colored by their strongest A gene partner
p4 <- ggplot(b_genes_data2, aes(x = reorder(gene, total_pubs), y = total_pubs, fill = max_a_gene)) +
  geom_bar(stat = "identity") +
  coord_flip() +
  labs(title = "List B Genes by Publication Count (Asymmetric)",
       subtitle = "Colored by strongest List A gene partner",
       x = "Genes (List B)",
       y = "Total Publications",
       fill = "Strongest A Partner") +
  theme_minimal() +
  theme(legend.position = "bottom")+
  scale_fill_brewer(palette = "Set1")


print(p3)

print(p4)

Heatmap with Overlap Percentages

The heatmap displays overlap percentages calculated from the publication co-occurrence counts:

plot_pubmatrix_heatmap(result,
                       title = "Asymmetric Gene Lists Overlap Percentages",
                       show_numbers = TRUE,
                       width = 16,
                       height = 14)

Overlap percentage heatmap with values displayed in each cell

Clean Heatmap

For a cleaner visualization without numbers, useful for presentations:

plot_pubmatrix_heatmap(result,
                       title = "Asymmetric Gene Lists Co-occurrence (Clean)",
                       show_numbers = FALSE,
                       width = 16,
                       height = 14)

Co-occurrence heatmap without numbers for better visual clarity

Summary

This vignette demonstrated:

Gene Set Preparation: Using MSigDB or manual curation to create meaningful gene lists
Literature Analysis: Running PubMatrixR to generate co-occurrence matrices
Data Visualization: Creating publication-ready heatmaps with custom color schemes and bar plots
Results Interpretation: Understanding co-occurrence patterns in the literature

The resulting matrices and visualizations can help identify: - Strong literature connections between gene sets - Potential research gaps (low co-occurrence pairs) - Patterns in publication trends over time - Most studied genes and their strongest literature partners

System Information

sessionInfo()
#> R version 4.5.1 (2025-06-13)
#> Platform: aarch64-apple-darwin20
#> Running under: macOS Tahoe 26.1
#>
#> Matrix products: default
#> BLAS:   /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.0.dylib
#> LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1
#>
#> locale:
#> [1] C.UTF-8/C.UTF-8/C.UTF-8/C/C.UTF-8/C.UTF-8
#>
#> time zone: Europe/London
#> tzcode source: internal
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] ggplot2_4.0.0    pheatmap_1.0.13  msigdf_2025.1    dplyr_1.1.4
#> [5] kableExtra_1.4.0 knitr_1.50       PubMatrixR_2.0
#>
#> loaded via a namespace (and not attached):
#>  [1] sass_0.4.10        generics_0.1.4     xml2_1.4.1         stringi_1.8.7
#>  [5] digest_0.6.37      magrittr_2.0.4     evaluate_1.0.5     grid_4.5.1
#>  [9] RColorBrewer_1.1-3 fastmap_1.2.0      jsonlite_2.0.0     viridisLite_0.4.2
#> [13] scales_1.4.0       pbapply_1.7-4      textshaping_1.0.4  jquerylib_0.1.4
#> [17] cli_3.6.5          rlang_1.1.6        withr_3.0.2        cachem_1.1.0
#> [21] yaml_2.3.10        tools_4.5.1        parallel_4.5.1     curl_7.0.0
#> [25] vctrs_0.6.5        R6_2.6.1           lifecycle_1.0.4    stringr_1.6.0
#> [29] fs_1.6.6           htmlwidgets_1.6.4  ragg_1.5.0         pkgconfig_2.0.3
#> [33] desc_1.4.3         pkgdown_2.2.0      pillar_1.11.1      bslib_0.9.0
#> [37] gtable_0.3.6       glue_1.8.0         systemfonts_1.3.1  xfun_0.54
#> [41] tibble_3.3.0       tidyselect_1.2.1   rstudioapi_0.17.1  farver_2.1.2
#> [45] htmltools_0.5.8.1  labeling_0.4.3     rmarkdown_2.30     svglite_2.2.2
#> [49] compiler_4.5.1     S7_0.2.0

# Additional system details
cat("Date generated:", format(Sys.time(), "%Y-%m-%d %H:%M:%S %Z"), "\n")
#> Date generated: 2025-11-13 17:15:46 GMT
cat("R version:", R.version.string, "\n")
#> R version: R version 4.5.1 (2025-06-13)
cat("Platform:", R.version$platform, "\n")
#> Platform: aarch64-apple-darwin20
cat("Operating System:", Sys.info()["sysname"], Sys.info()["release"], "\n")
#> Operating System: Darwin 25.1.0
cat("User:", Sys.info()["user"], "\n")
#> User: enrique

A comprehensive guide to analyzing publication relationships

ToledoEM

2025-11-13

Introduction

Acknowledgments

NCBI API Key (Recommended)

Preparing Gene Sets

Making the gene lists from MSigDB

Fallback Example Dataset

Literature Analysis

Running PubMatrixR

Results Table

Visualization

Publication Count Bar Plots

Heatmap with Overlap Percentages

Clean Heatmap

Results Table

Bar Plots for Asymmetric Lists

Heatmap with Overlap Percentages

Clean Heatmap

Summary

System Information
