STL Deformer Demo

A Sine Falcon Millennium
Note

This project is under constant development.

This project demonstrates a real-time STL deformation tool using Three.js and p5.js. It allows you to load an STL file, apply various deformation effects (Noise, Sine Wave, Pixelate), and visualize the deformed model. It’s a tool for pushing the boundaries of what you expect from a 3D model. The goal is to create subtly unsettling, oddly beautiful, and deliberately weird transformations of STL objects. Think of it as a digital sculpting playground.

Tip

Transform your 3D models into something unexpected, unsettling, and strangely beautiful. This experimental tool lets you push the boundaries of what’s possible with STL files, creating deliberate distortions and abstract variations of your models. Think of it as a digital sculpture lab where mathematical chaos meets artistic expression.

Motivation & Creative Exploration

  • Subversion of Form: This project isn’t about perfect realism. It’s about deliberately distorting the familiar, creating unsettling or intriguing shapes.
  • Algorithmic Abstraction: Explore how mathematical functions (noise, sine waves) can be used to transform 3D geometry and change the practicality of 3d shapes.
  • Visual Metaphors: Consider how different deformations might represent abstract concepts – chaos, tension, growth, decay.

Features

  • STL Loading: Loads STL files using the Three.js STLLoader. (Start with simple objects – boxes, spheres, basic shapes – to get the basics working).
  • Deformation Effects:
    • Noise: Applies a noise-based deformation, introducing chaotic movement and distortion.
    • Sine Wave: Generates a sinusoidal wave deformation, producing rhythmic, flowing changes – potentially creating mesmerizing, pulsating effects.
    • Pixelate: Pixelates the model by snapping vertices to a grid, offering a stark, fragmented aesthetic.
  • Real-time Deformation: Updates the deformation in real-time, allowing for interactive experimentation.
  • Parameter Controls: Interactive sliders and checkboxes for adjusting deformation parameters.
  • Visual Feedback: Displays the deformed model in 3D space.
  • Export: Exports the deformed model as an STL file – save your weird creations!

Deformation Examples

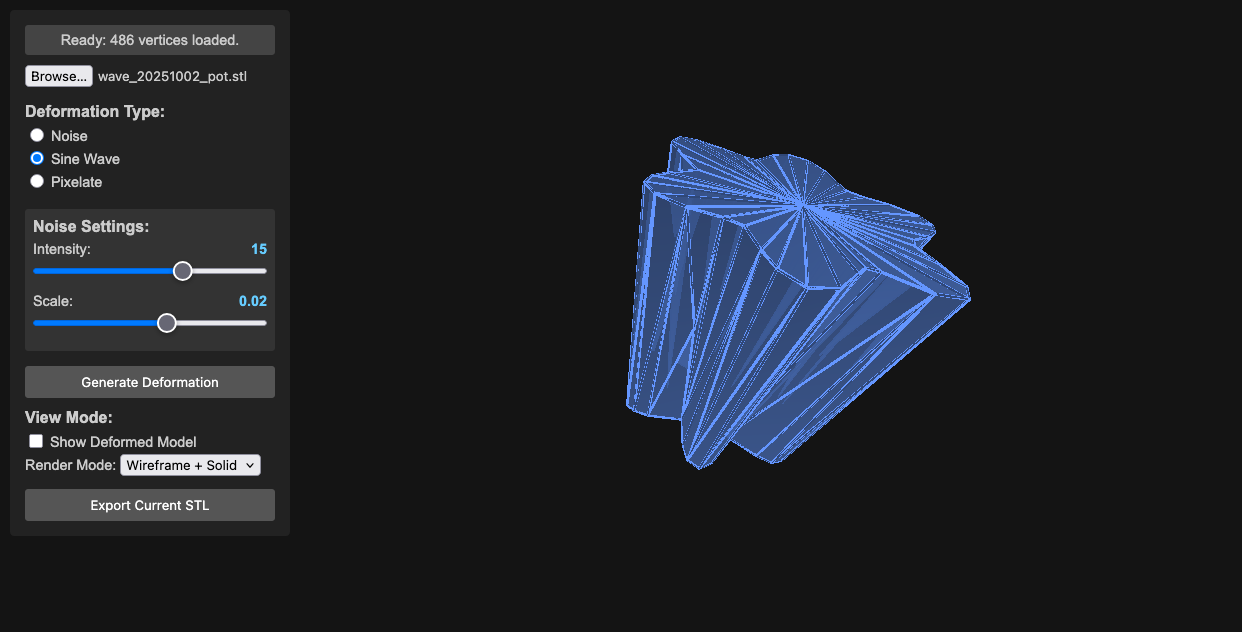

Original

Noise Deformation

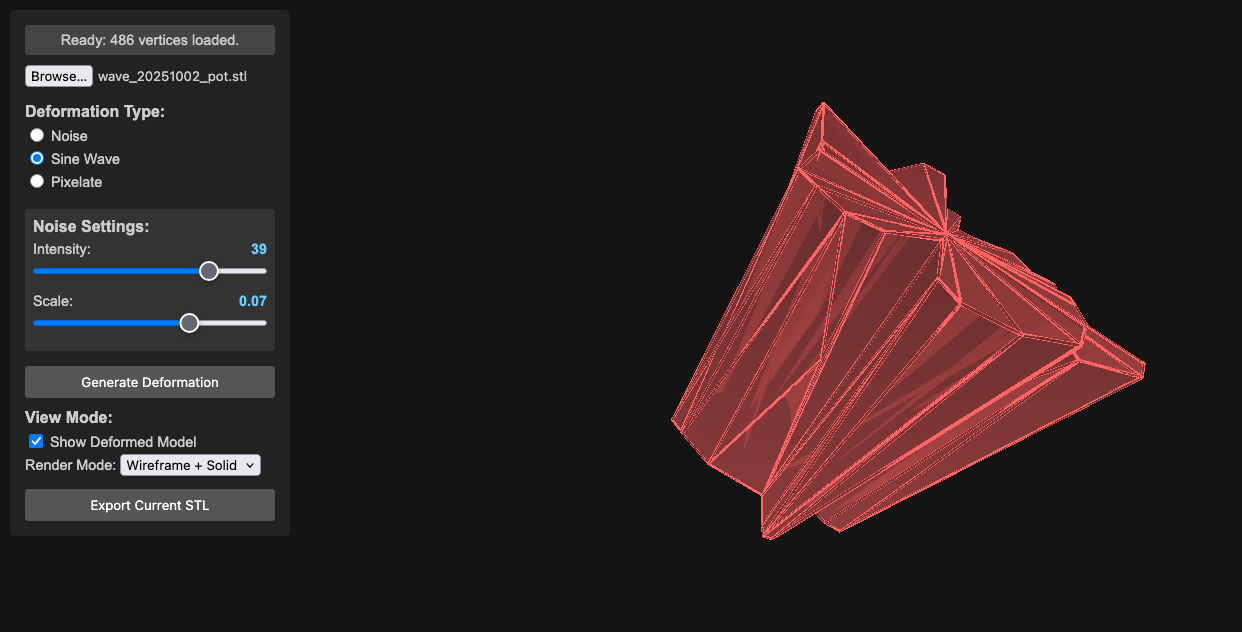

Sine Wave Deformation

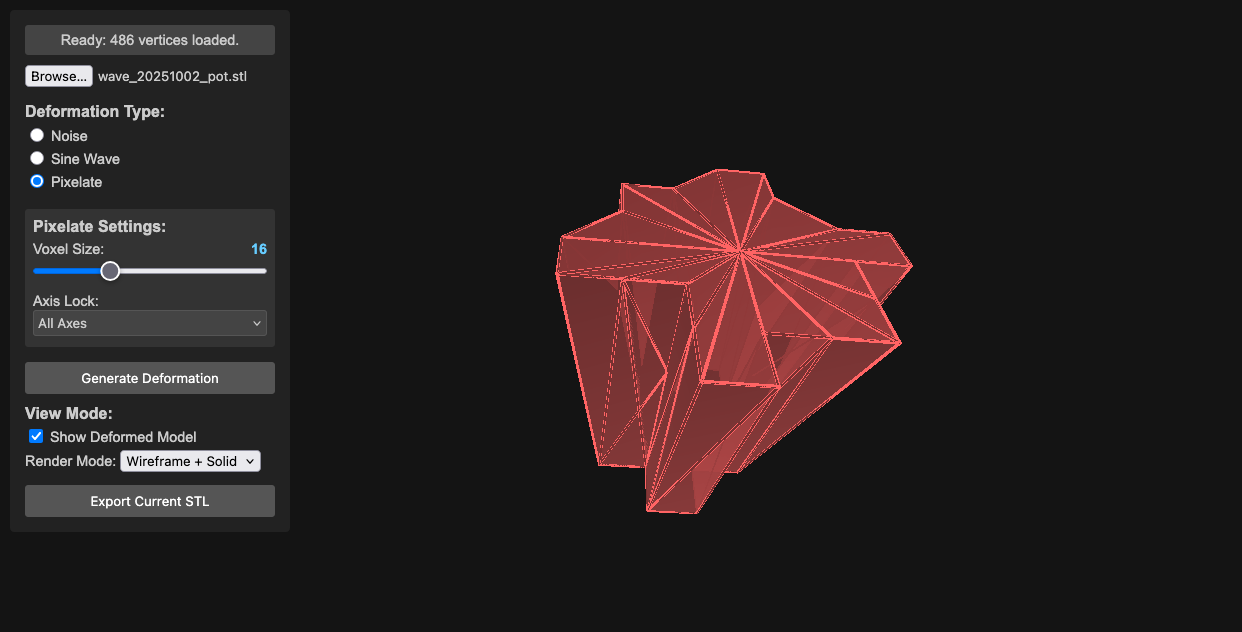

Pixelated Deformation


Pixelated Deformation

Requirements

Browser

  • Modern web browser (Chrome, Firefox, Safari, Edge)
  • JavaScript enabled

Dependencies

  • Three.js (v128+)
  • p5.js (v1.7.0+)
  • FileSaver.js (included)

Setup

Files

The project consists of:

  • index.html
  • sketch.js
  • Required JavaScript libraries

Installation

  1. Place all files in a directory
  2. Open index.html in your web browser

Usage

  1. Load STL: Click the “File Input” button to select an STL file.
  2. Deformation Type: Choose the deformation type from the radio buttons (Noise, Sine Wave, Pixelate).
  3. Adjust Parameters: Use the sliders and checkboxes to control the deformation parameters.
  4. Generate Deformation: Click the “Generate Deformation” button.
  5. Visualize: The deformed model will be displayed in the 3D view.
  6. Export (Optional): Click the “Export Current STL” button to save the deformed model as an STL file.

Controls

  • File Input: Select an STL file.
  • Radio Buttons: Choose the deformation effect.
  • Sliders: Adjust the parameters of the chosen effect.
  • Generate Deformation: Apply the deformation.
  • Export Current STL: Export the deformed model.

Code Structure

  • index.html: The main HTML file that sets up the Three.js scene, UI elements, and event listeners.
  • main.js: Contains the core logic for loading the STL, applying the deformation, rendering the model, and handling user interactions.

Important Notes

WarningPerformance Considerations
  • The performance depends on the complexity of the STL model and chosen deformation algorithm
  • The rendering process can be slow with complex models
ImportantPost-processing Required

After deformation, process the model in Meshlab using these filters:

  1. Filters -> Cleaning and Repairing
  2. Remove Zero Area Faces (twice)
  3. Repair Non-manifold Edges (split)
Note

This is a basic demonstration that can be extended with more advanced features.

Contributing

Feel free to contribute to this project! You can:

  • Submit bug reports
  • Suggest feature requests
  • Create pull requests

License

This project is licensed under the MIT License.
