STLShaper by ToledoEM

Note

This project is under constant development.

STLShaper loads STL files and applies mathematical deformations in real-time: noise, sine waves, pixelation, inverse distance weighting, and topology-altering methods like tessellation and Menger sponges. You adjust parameters and export the result. The point is to make your models deliberately weird—unsettling, beautiful, broken.

Tip

Use deformation to explore how a single object changes under different mathematical rules. What does your model look like if you apply noise? Sine waves? A Menger sponge carved through it? Save the weird ones.

Motivation & Creative Exploration

Subversion of Form: This project isn’t about perfect realism. It’s about deliberately distorting the familiar, creating unsettling or intriguing shapes.
Algorithmic Abstraction: Noise, sine waves, and inverse distance weighting deform geometry in predictable and chaotic ways. Noise breaks regularity. Sine waves ripple across surfaces. IDW bends space around control points.
Visual Metaphors: Consider how different deformations might represent abstract concepts – chaos, tension, growth, decay.

Features

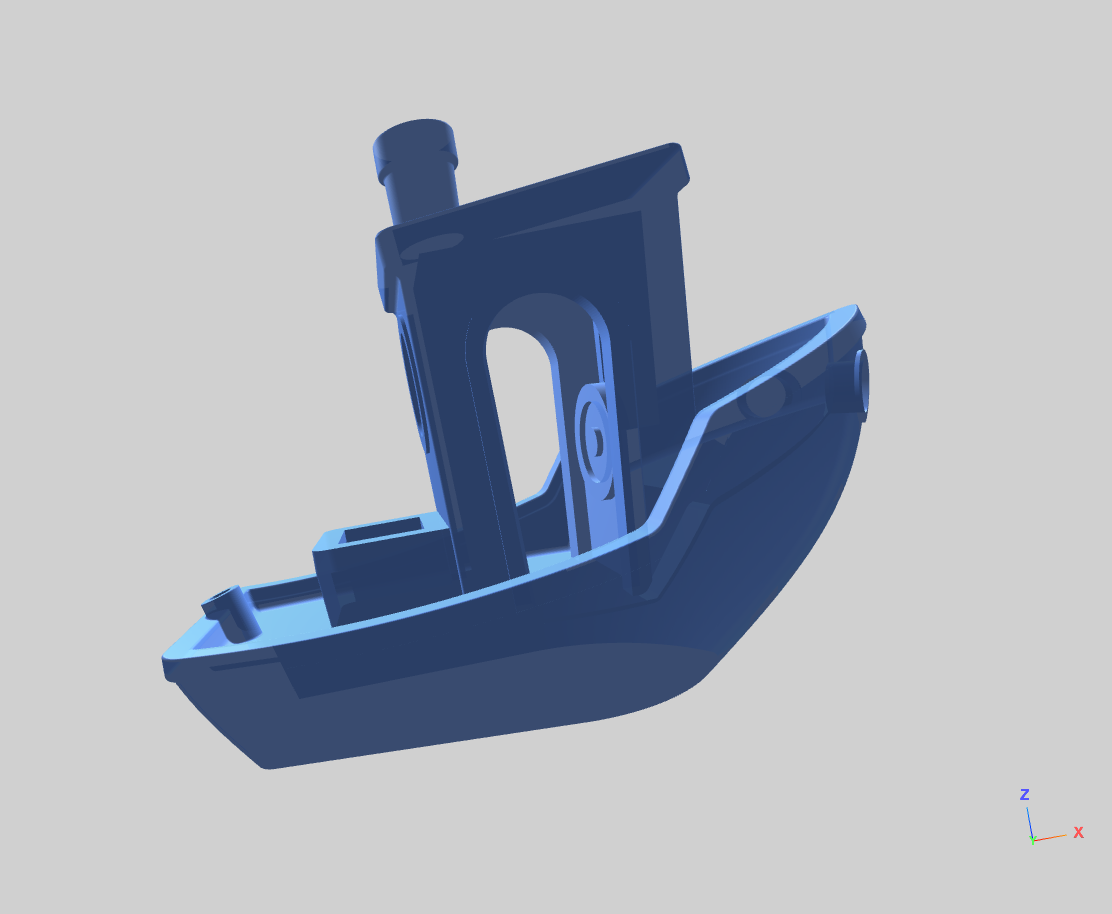

STL Loading: Loads STL files using the Three.js STLLoader. (Start with simple objects – boxes, spheres, basic shapes – to get the basics working).
Deformation Effects:
- Noise: Applies a noise-based deformation, introducing chaotic movement and distortion.

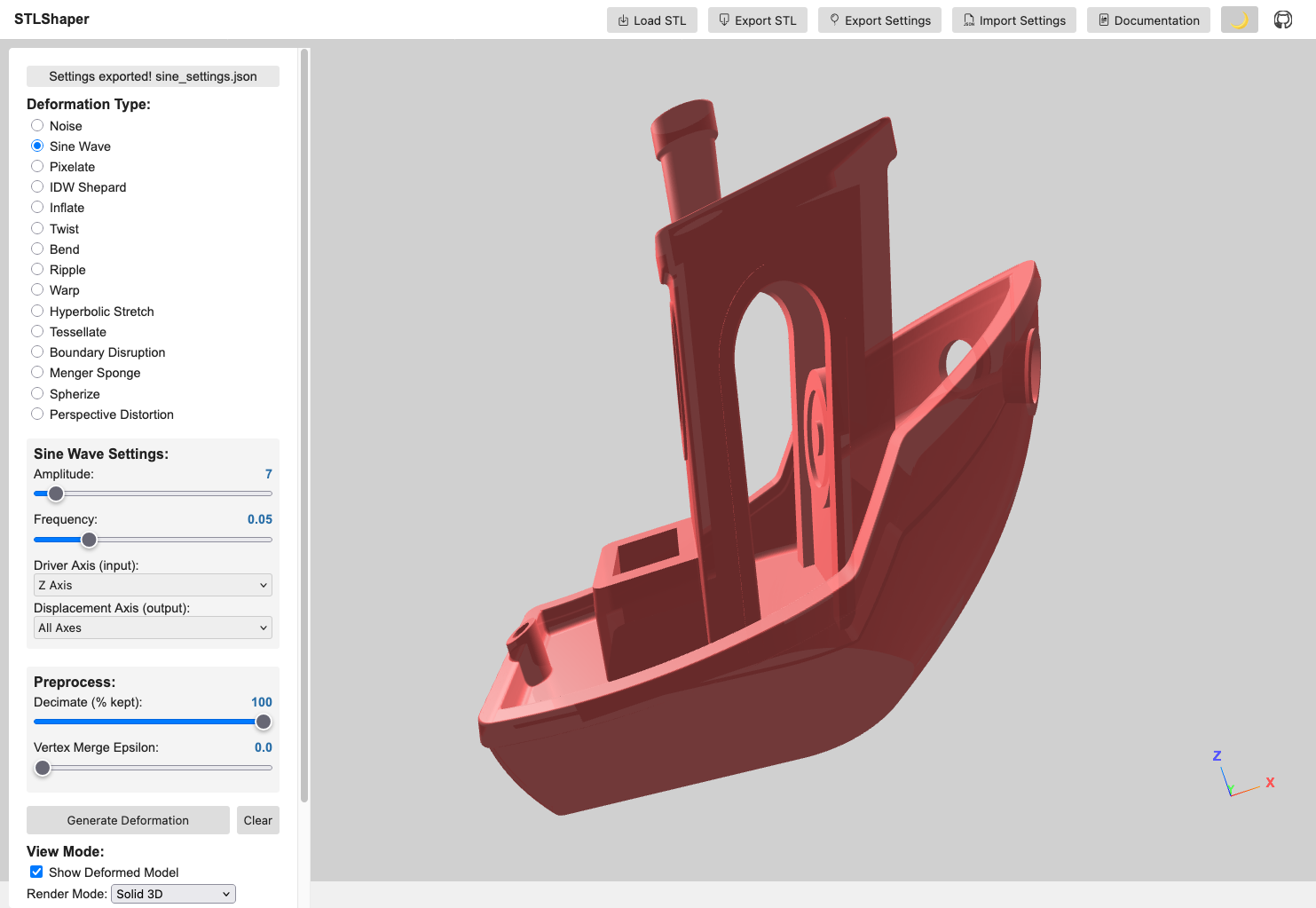

- Sine Wave: Displaces vertices along a sine curve, creating rhythmic ripples across the model.

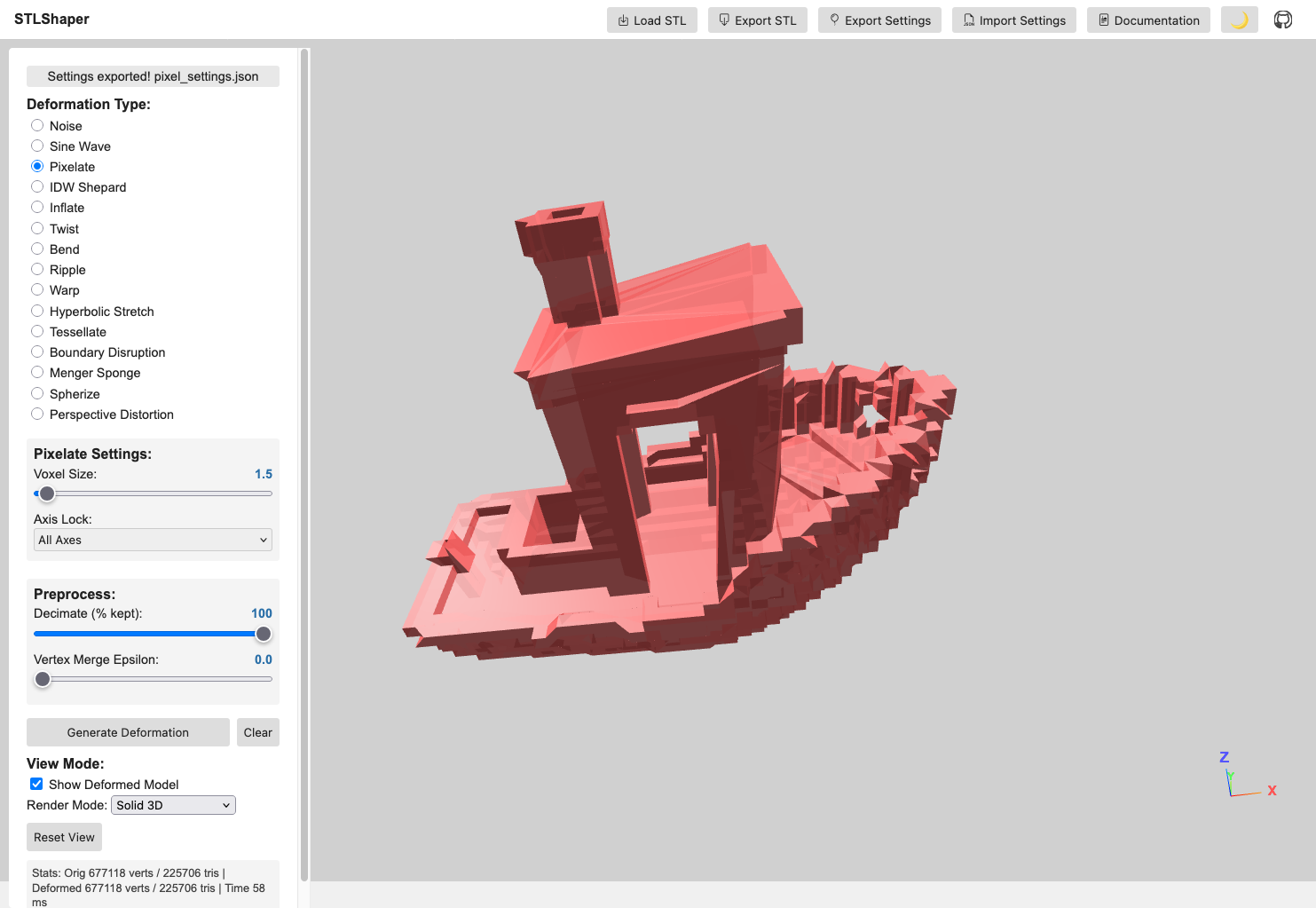

- Pixelate: Pixelates the model by snapping vertices to a grid, offering a stark, fragmented aesthetic.
- IDW Shepard: Multiple control points scattered through the model’s interior. Each vertex moves based on distance to those points—closer points pull harder.

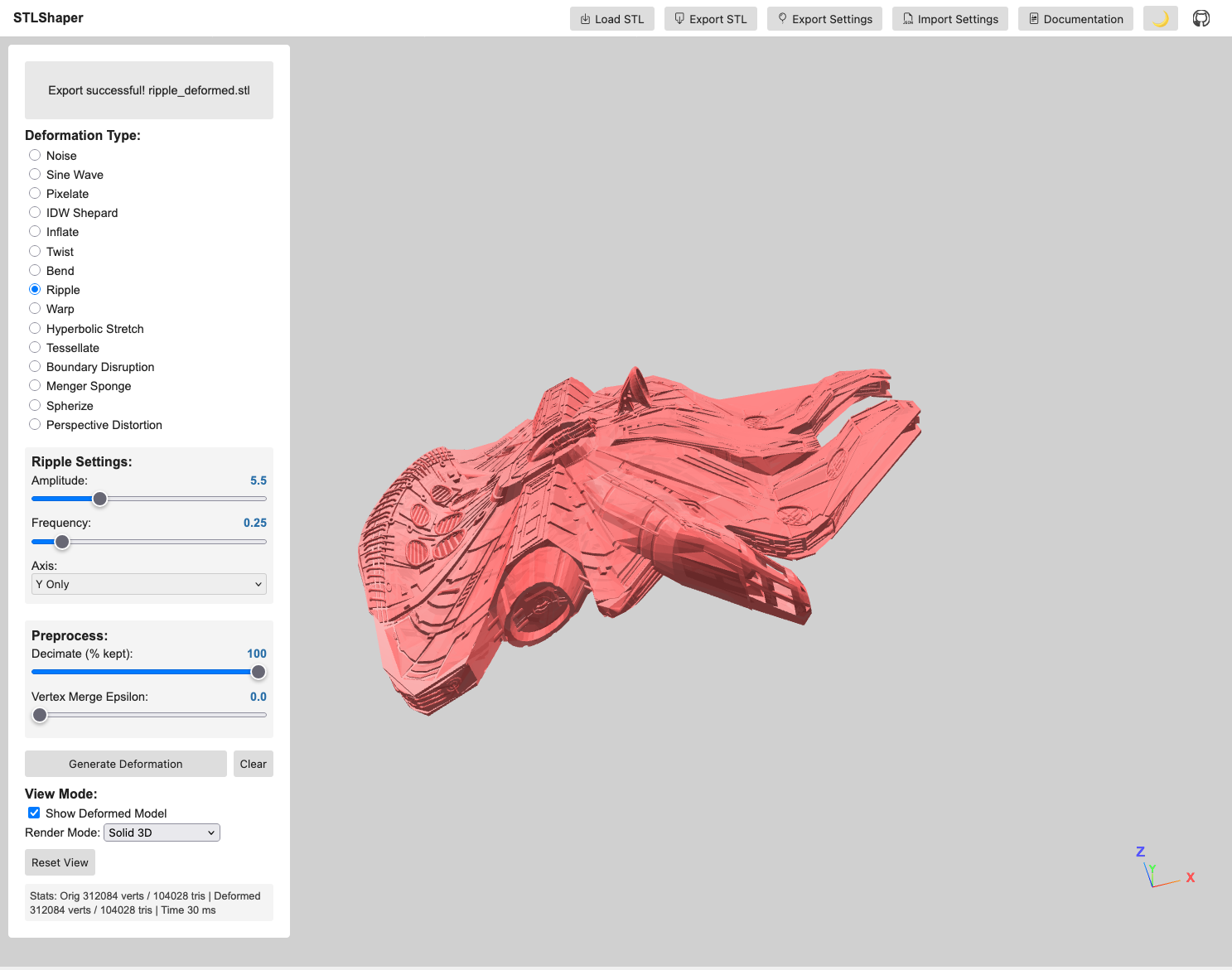

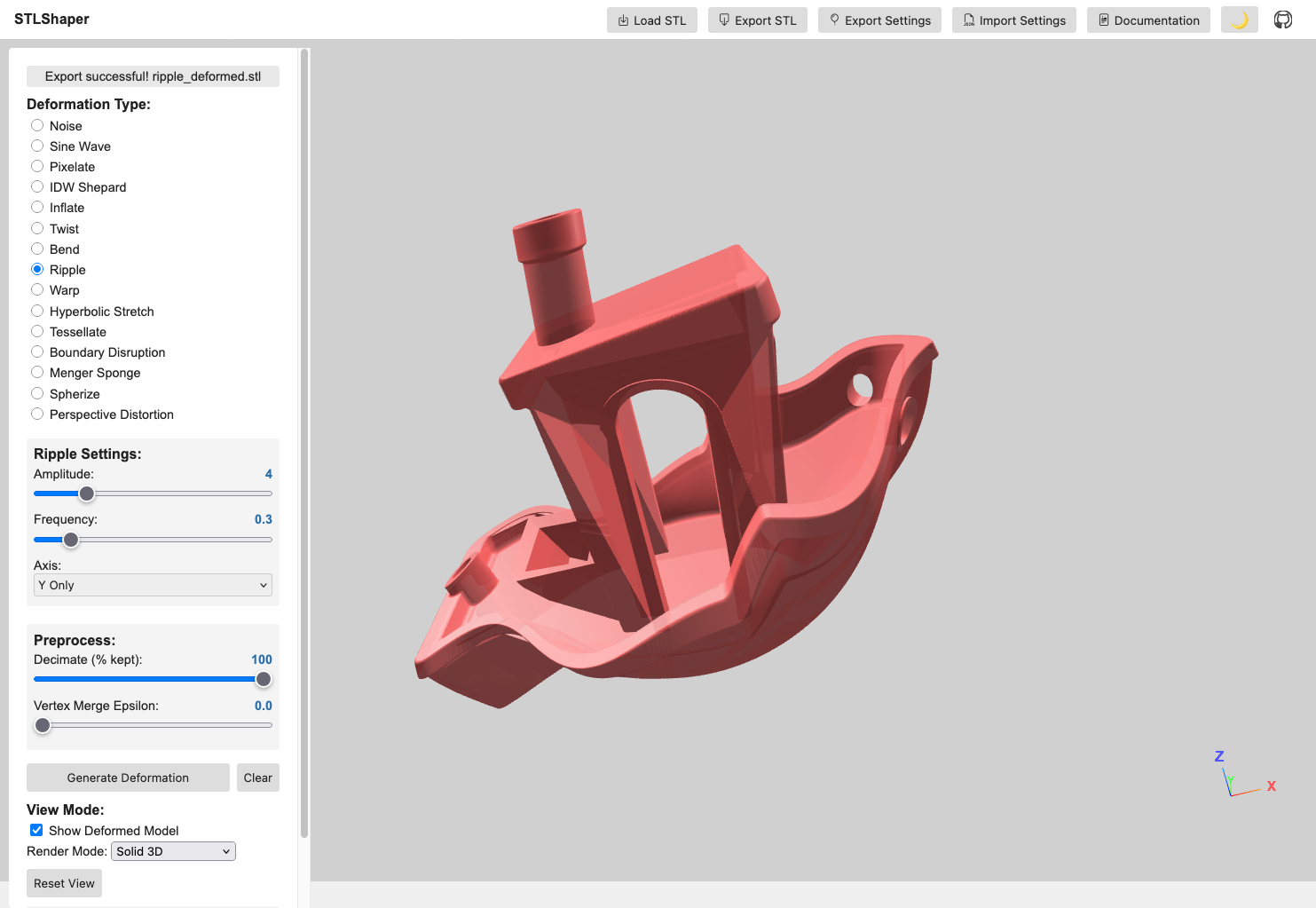

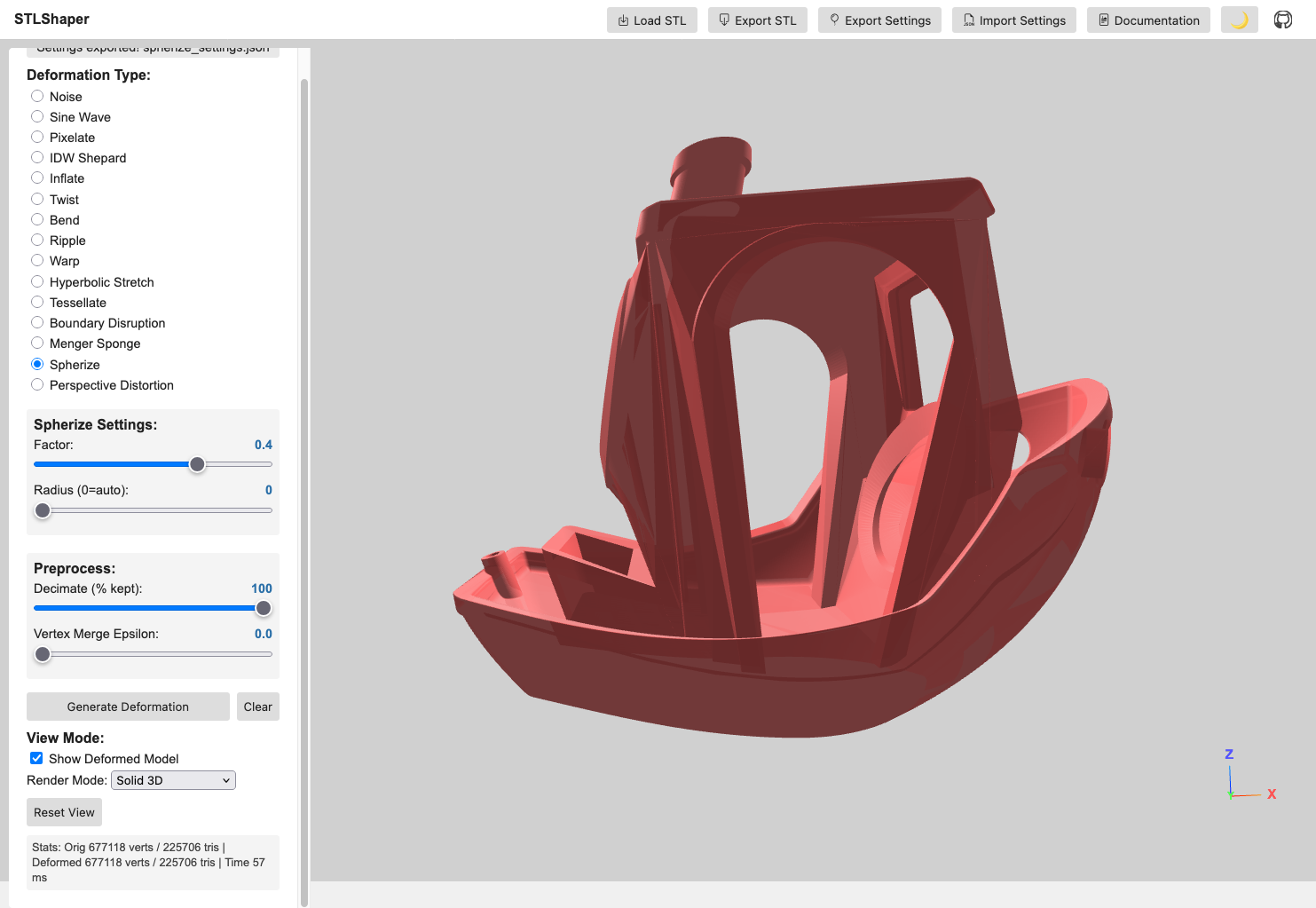

- Inflate / Twist / Bend / Ripple / Warp / Hyperbolic Stretch: A suite of expressive surface operators. Inflate swells outward by distance from center, Twist rotates along a chosen axis, Bend arcs the mesh over a controllable range, Ripple adds wave-like undulation, Warp introduces spatial noise-based offsets, and Hyperbolic Stretch exaggerates form along an axis for elastic, pulled silhouettes.

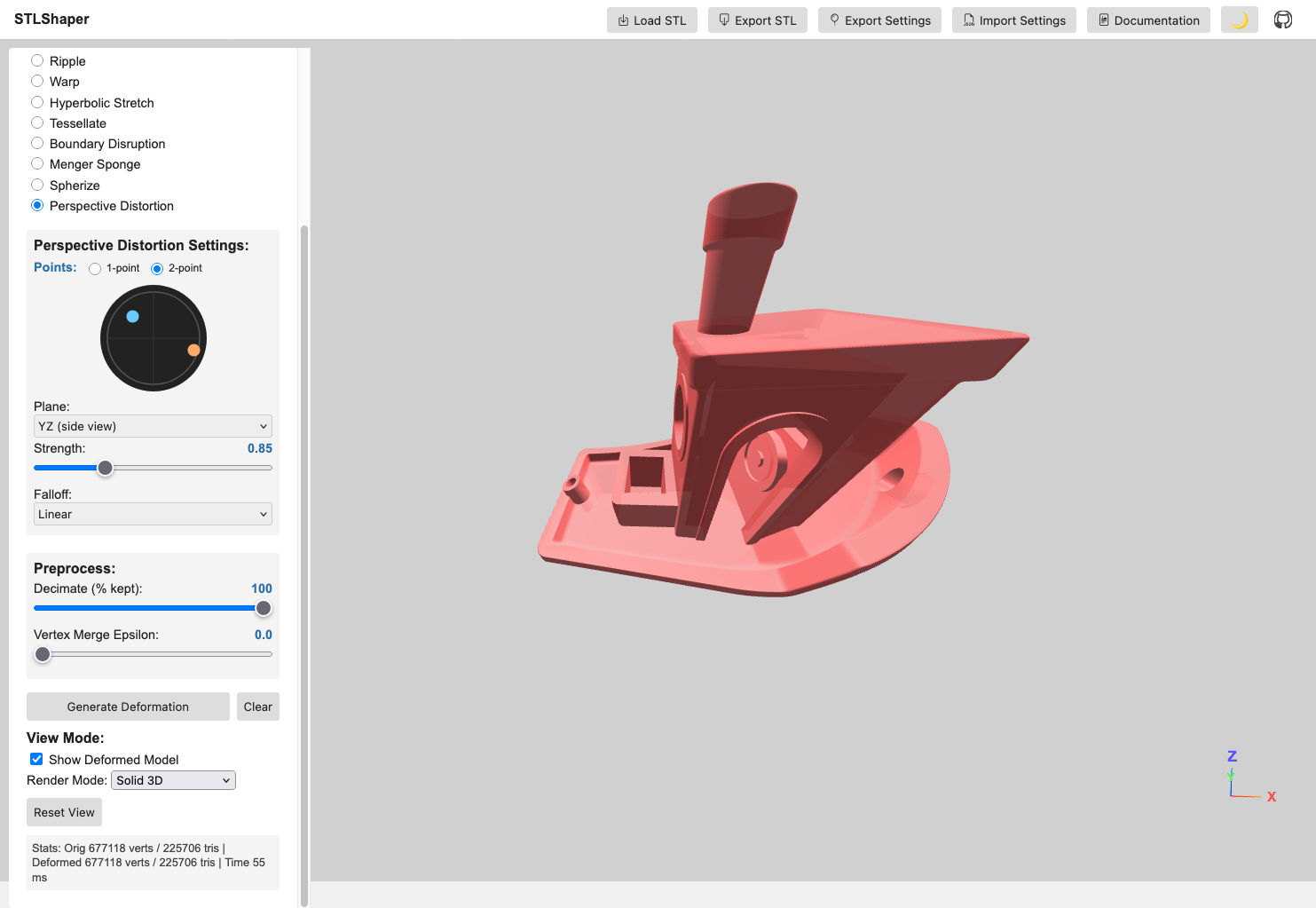

- Perspective Distortion: Projects geometry through a configurable vanishing point. An interactive canvas widget lets you drag a dot to set the distortion direction; the center means no effect. Supports 1-point and 2-point modes (second orange dot adds an independent vanishing point), a plane selector (XY / XZ / YZ) to map widget axes to model space, linear and exponential falloff modes, and touch input on mobile.
- Tessellate / Boundary Disruption / Menger Sponge: Topology-oriented transformations. Tessellate subdivides triangles to add geometric density, Boundary Disruption jitters near edges for torn or frayed contours, and Menger Sponge carves repeating voids for porous, lattice-like structures.
Real-time Deformation: Updates the deformation in real-time, allowing for interactive experimentation.
Parameter Controls: Interactive sliders and checkboxes for adjusting deformation parameters.
Adaptive Parameter Ranges: Parameters automatically scale based on model size to ensure consistent effects across different STL scales.
Visual Feedback: Displays the deformed model in 3D space with control point visualization for IDW deformation.
Axis Gizmo: On-screen X/Y/Z labels for orientation.
Multi-Axis Selection: Axis-based deformations (twist, bend, ripple, hyper) can target multiple axes.
Parallel Processing: Uses Web Workers for efficient processing of large STL files with thousands of vertices.
Preprocess Options: Optional cleanup before deformation. Decimate keeps a percentage of triangles (faster but less detail), and Vertex Merge collapses near-identical vertices within an epsilon (reduces duplicates and can stabilize deformations). Not required for most models, but helpful for very dense STLs or when you need faster iteration.
Import/Export Settings: Reuse deformation presets across STLs; exported settings include preprocess parameters.
Stats HUD: Displays vertex/triangle counts and deformation time.
Export: Exports the deformed model as an STL file – save your weird creations!

Deformation Examples

IDW Shepard Deformation

Control points pull vertices based on distance. Closer points pull harder. The result: smooth, organic bending without the grid-like feel of axis-based or noise-driven methods.

Key Features

Poisson Disk Sampling: Evenly distributed control points to prevent clustering
Volume-Constrained Placement: Points are guaranteed inside the mesh volume
Seed-Based Generation: Deterministic point placement for reproducible results
Manual Control Points: Optional manual list of points (single or multi-point)
Sampling Rays Control: Adjustable inside-mesh sampling for speed/robustness
Adaptive Influence: Inverse distance weighting with customizable power falloff
Visual Feedback: Wireframe spheres show control point positions and influence
Scalable Effects: Parameter ranges scale to model size for consistent output

Technical Implementation

Multi-Point IDW: Each vertex is influenced by all control points
Parallel Processing: Web Workers handle heavy computation for large meshes
Real-time Visualization: Control points scale with model size (5% of largest dimension)
Robust Volume Detection: Advanced ray casting ensures points are truly inside the mesh

Perspective Distortion

Perspective Distortion simulates the geometric projection of a vanishing point applied directly to mesh vertices — not a camera trick, but an actual vertex transformation.

Key Features

Interactive canvas widget: Drag a dot inside a circle; dot position = stretch direction, center = no effect
1-point mode: Single vanishing point for classic perspective exaggeration
2-point mode: Second orange dot adds an independent vanishing point for complex projections
Plane selector: XY / XZ / YZ maps the 2D widget axes to the correct model-space plane
Falloff modes: Linear (uniform gradient) or Exponential (strong near vanishing point, soft far away)
Touch support: Works on mobile and tablet

Requirements

Modern web browser with Web Worker support (Chrome 4+, Firefox 3.5+, Safari 4+, Edge)
JavaScript ES6+ features supported by your browser
Three.js r121 (bundled)
FileSaver.js (included)
Web Workers (required for parallel processing of large deformations)

Run Options

Run locally: Clone the repository and open index.html in a modern browser.
Run online: Open the hosted version at https://toledoem.github.io/stlshaper/.

Setup

Place all files (index.html, main.js, libraries) in a directory.
Open index.html in your web browser.

Usage

Load STL: Click the “File Input” button to select an STL file.
Deformation Type: Choose the deformation type from the radio buttons (Noise, Sine Wave, Pixelate, IDW Shepard, etc.).
Adjust Parameters: Use the sliders and inputs to control the deformation parameters. IDW parameters adapt automatically to model size.
Generate Deformation: Click the “Generate Deformation” button.
Visualize: The deformed model will be displayed in the 3D view.
Export (Optional): Click the “Export Current STL” button to save the deformed model as an STL file.

Controls

File Input: Select an STL file.
Radio Buttons: Choose the deformation effect.
Sliders: Adjust the parameters of the chosen effect.

Noise Controls

Intensity: Controls the strength of the noise deformation (0.1 - 5.0)
Scale: Controls the frequency/size of noise features (0.005 - 0.5)
Axis: Choose which axes to apply noise to (All, X, Y, Z, or combinations)

Sine Wave Controls

Amplitude: Controls the height of the sine waves (1 - 100)
Frequency: Controls how many waves fit in the model (0.01 - 0.2)
Driver Axis: Which axis provides the input to the sine function (X, Y, Z)
Displacement Axis: Which axes the sine wave displaces (X, Y, Z, or combinations)

Pixelate Controls

Voxel Size: Size of the pixelation grid (0.5 - 50)
Axis Lock: Which axes to pixelate (All, X, Y, Z, or combinations)

IDW Shepard Controls

Number of Points: How many control points to generate (3 - 50)
Seed: Numeric seed for reproducible control point placement (0 - 10000)
Weight: Strength of attraction/repulsion at control points (adaptive range by model size)
Power: Influence falloff with distance (0.5 - 6.0)
Global Scale: Overall deformation scaling (adaptive range by model size)
Generate Deformation: Apply the deformation.
Export Current STL: Export the deformed model.

Perspective Distortion Controls

Canvas widget: Drag dot to set vanishing point direction and magnitude
Mode: 1-point or 2-point
Plane: XY / XZ / YZ
Strength: Overall distortion magnitude
Falloff: Linear or Exponential

Code Structure

index.html: The main HTML file that sets up the Three.js scene, UI elements, and event listeners.
main.js: Core logic for loading the STL, applying deformation, rendering, and UI. Includes Poisson disk sampling, volume detection, and adaptive parameter scaling.
worker.js: Web Worker for parallel processing of vertex deformations (especially IDW).
libraries/: Three.js, FileSaver.js, and other required libraries.

Important Notes

Performance Considerations

The performance depends on the complexity of the STL model and chosen deformation algorithm
The rendering process can be slow with complex models
Web Workers improve responsiveness for large meshes and multi-point IDW

Post-processing Required

After deformation, you may need to repair the mesh in Meshlab. Use these filters:

Filters -> Cleaning and Repairing
Remove Zero Area Faces (twice)
Repair Non-manifold Edges (split)

Notes

IDW Shepard deformation works best with solid, manifold meshes. Complex or thin-walled models may produce unexpected results.
Some STLs may require normal regeneration to avoid black/incorrect shading (handled in recent builds).

Changelog

0.8.0 (2026-05-01)

Exposed global scene, camera, and renderer for browser console access
Improved UI/GUI with enhanced styling and layout refinements
Canvas widget layout and interaction improvements
Documentation rendering and organization

0.7.0 (2026-04-21)

Added Perspective Distortion deformation with interactive vanishing-point picker widget
Circle canvas widget with draggable dot to set distortion direction; center = no effect
1-point and 2-point mode: second orange dot adds independent vanishing point
Plane selector (XY / XZ / YZ) maps widget axes to model space
Linear and exponential falloff modes
Touch support for the canvas widget

0.6.0 (2026-02-10)

Added importable deformation settings to reuse presets across STLs
Added on-screen axis gizmo with X/Y/Z labels
Added multi-axis selection for axis-based deformations (twist, bend, ripple, hyper)
Improved Menger sponge, tessellation range, settings export, and UI/camera performance
Fixed shading issues by ensuring valid vertex normals, plus assorted robustness fixes

0.5.0 (2026-02-08)

Updated GUI and camera behavior
Fixed P0, P1, P3, and P4 issue sets

0.4.0 (2025-10-28)

Added settings workflow groundwork and Web Worker processing
General refinements and cleanup

0.3.0 (2025-10-27)

Initial autoloader workflow

0.2.0 (2025-10-06)

Bug fixes and iterative improvements

0.1.0 (2025-10-04)

Initial project scaffold and documentation

Contributing

Feel free to contribute to this project! You can:

Submit bug reports
Suggest feature requests
Create pull requests

License & Attributions

STLShaper is released under the MIT License.

Third-Party Libraries & Resources

Three.js (v0.121.1) – MIT License
- 3D graphics library for WebGL rendering
Bootstrap Icons – MIT License
- Icon library for UI elements (box-arrow-down, box-arrow-in-down, filetype-json, balloon icons)
FileSaver.js – MIT License
- Client-side file download functionality for STL exports

Sample STL Models

Sample 3D models used for testing and demonstration are sourced from:

NIH 3D Print Exchange – Public Domain
- Freely available biomedical 3D models for non-commercial use and research

Attribution

Built by Enrique Toledo (@ToledoEM)

On Printables

Disclaimer: This tool is provided as-is for experimental and educational purposes.
